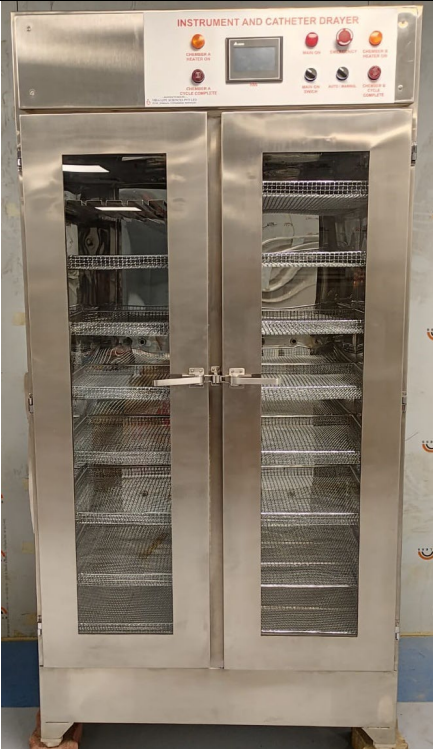

Vida-Instrument cum Catheter Dryer (Hot air oven)

Outer Size: 36” (L)X30” (W)X72” (H)
Inner Size for Instrument: 15” (L)X22” (W)X51” (H)
Inner Size for Catheter: 15” (L)X22” (W)X51” (H)
SS wire mesh OR Perforated tray for instrument dying, both side of dryer provision for instrument and catheter simultaneously. – 8nos.
For Catheter drying 2 types of differ trays for various types of tubes.

One side is for instrument and other side for catheter, ventilator tube drying
Both side are having separate control
2no. PLC control with HMI.
Temp. Range for Instrument- 30ºC to 250ºC & for Catheter 5ºC to 60ºC
Inbuilt Internal Air circulation & ventilation.
Both doors having toughened glass at the centre.
Internal chamber will be SS 304, Clear bottom and rounded corners for easy cleaning.
The air should be heated by an electric heating element controlled and regulated by a precision thermostat.
The cabinet should be provided with a built in electric precipitator for cleaning of incoming air.

The current chamber temperature displayed on the display panel.
HMI touch display with independent selection and display each chamber.
S. S 304L. chamber with 304 S.S. outer cabinet.
Separations efficiency should be 94-100% for particle size 0.01-5 and should have HEPA filter air inlet in chamber.
The cabinet is equipped with alarms for ‘Cycle Complete’
