Single Door Automatic Cartridge Type with Touch Screen and Printer

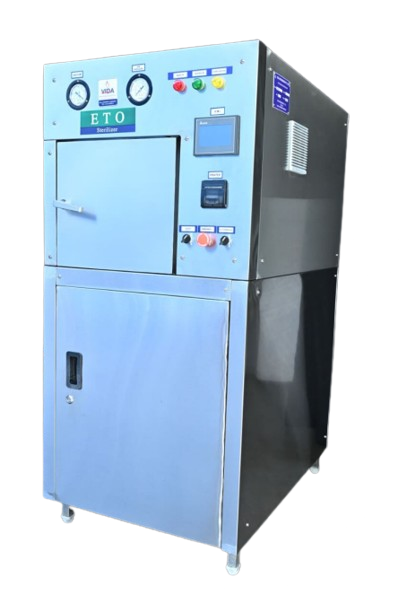

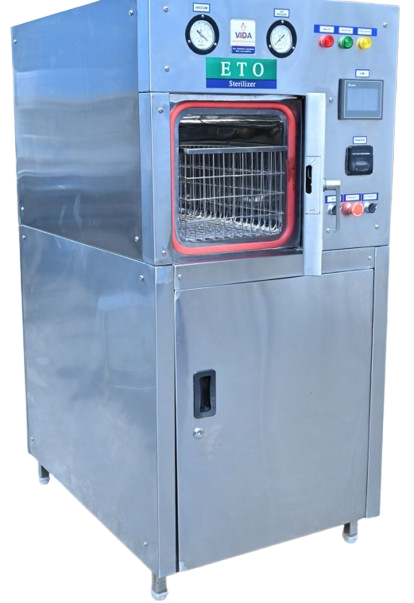

Vida E.T.O. Sterilizer – Fully Automatic SS 304 with Sensor
Highlights
- SS 304
- Automatic Cartridge
- 6 Hrs Cycle
- PLC HMI
Product Overview
- Single Door Automatic Cartridge Type with Touch Screen and Printer with Sensor
- Total Cycle Time with aeration mode is only 6 hrs
- Material of construction :- Chamber :4MM S.S. 304
- Outer body : S.S. 304
- Door : S.S. 304
- Operating Gas pressure : 1kg /Cm2
- Hydraulic pressure test : 2kg
- Manual operating system available in case auto system not works.
- Pneumatic solenoid valve for perfect Automation.
- Safe use of Cartridge – cartridge is punctured only when proper negative pressure build-up and VLT Test passed.
- Outside wall: Required heating arrangement for maintaining temperature in chamber will be provided. It will be properly insulated and covered.
- Locking System: Manual Safety lock provided on door.
- One trays of S.S. 304 will be provided for easy loading of material.
Indicators & Vacuum System
- Temperature Indicator: Range : 0°C to 100°C
- Pressure Indicator: Range: 28” vacuum to 30psig.
- Vacuum System : Vacuuming is achieved using vacuum pump
- Exhaust and Air Break: Exhaust for Sterilizer chamber gases is provided. For vacuum break air suction is provided through filter.
Technical Construction & Automation
- Chamber: SS304 argon welded.
- Outer Body-S.S. 304
- ETO Door- S.S.304.
- Door locking- Manual door locking system.
- Door Gasket- Silicone.
- Pressure gauge - 63mm dial size good brand
- Vacuum gauge - 63mm dial size good brand
- Control valve – Pneumatic Solenoid Valve 2/2 way Control valve.
- Vacuum motor- 3ph 1.5hp watering vacuum pump.
- Vacuum Sensor - control Vacuum in chamber.
- Temp sensor - PT 100 Sensor and Thermostat sensor for extra safety mode
- Automation - PLC - 4.3 HMI, With thermal printer
Sizes Available
- 1 x 1 x 2ft
- 1 x 1 x 3ft
- 1 x 1 x 4ft
- 1 x 1 x 4.5ft
- 1.5 x 1.5 x 5ft
