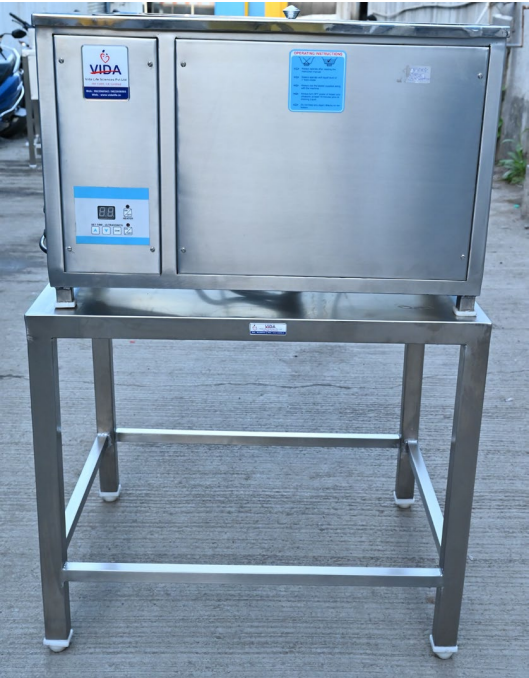

VIDA -40 Liters Capacity Ultrasonic Cleaning
Highlights
- 40 L Capacity
- Type: 40 L 500 H
- 500 Watts
- 45 kHz
- SS 304
Specifications
- Ultrasonic Cleaner Type: 40 L 500 H
- Ultrasonic Power: 500 Watts
- Tank Capacity: 40 Litres
- Without D-gassing cycle
- Tank Size: 550 x 300 x 200 mm
- Tank Frequency: 45 + 3 KHZ
- Electric Supply: 230 AV. 50 Hz with good earthing
- Heater: Will be provided with to raise the liquid temp. Up to 0-70o.
- Transducer: PZT sandwiched type bonded on the base of the tank
- Accessories: SS lid and wire Mesh Basket to handle your cleaning materials
- Drain: Will be provide with strainer
- Power Supply: 230 V AC, 3 phase with neutral & earthing
Sizes Available
- Tank M O C: SS 304, 16 Gauge with argon welding & buffed & polished with round corners
- Construction: Transduzerised tank and ultrasonic generator housing in one cabinet SS -304, 16gauge, control panel & inbuilt cooling fan.
- Unit suitable for Instrument Cleaning comprising the following:
- Control System: User friendly & will be ergonomically designed with automatic operation of the system.
- Automatic, Thermostatic temperature controller
- Solid state ultrasonic generator with electro mechanical transducer of frequency upto45 KHZ
- Adjustable timer for setting cycle duration, complete with control switches, indicators, overload protection.
