Fully Automatic / Delta PLC / Touch Screen / 350 liters / SS304
Vida-Automatic Sensor Operated Door - Washer Disinfector with Dryer Double Door Fully Automatic with Delta PLC and Touch Screen with thermal printer with Visible toughened glass for both door, volume 350liters, made out of complete SS304
Highlights
- Double Door
- Delta PLC
- 350 Liters
- Sensor Operated
- Disinfection up to 90°C
Product Description
- Double Door made up of toughened glass, to facilitate the loading process & crystal clear vision.
- Washer Disinfector is a very powerful tool to reduce Hospital acquired infection for patient and Hospital staff as it reduces the bio burden from the instrument thus making it safe for further handling.
- It can be used in wards, OT, and CSSD.
- Washer Disinfector is a straight through model designed to wash, rinse and disinfect all kinds of surgical instruments, anaesthetic and respiratory tubing, suction devices, bottles and other glassware/metal apparatus.
- The process is automatically controlled in a time regulated sequence Through a PLC with Ethernet communication port and 4” touch screen Human Machine Interface.
Volume 350liters / SS304 / Touch Screen / Thermal Printer
Vida -Washer Disinfector with Dryer Double Door Fully Automatic with Delta (Manual Door) PLC and Touch Screen with thermal printer
Highlights
- 350 Liters
- Delta PLC
- Manual Door
- SS 304
- Double Glass Door
Product Description
- Double Door made up of toughened glass, to facilitate the loading process & crystal clear vision.
- Washer Disinfector is a very powerful tool to reduce Hospital acquired infection for patient and Hospital staff as it reduces the bio burden from the instrument thus making it safe for further handling.
- It can be used in wards, OT, and CSSD.
- Washer Disinfector is a straight through model designed to wash, rinse and disinfect all kinds of surgical instruments, anaesthetic and respiratory tubing, suction devices, bottles and other glassware/metal apparatus.
- The process is automatically controlled in a time regulated sequence Through a PLC with Ethernet communication port and 4” touch screen Human Machine Interface.
Vida-Sergical Instrument Washer S.S.
Highlights
- Single Door
- 350 Liters
- Delta PLC
- CE Mark
- Hinged Door
- Pre-wash & Rinse
Product Overview
- The process includes pre-wash, detergent wash, and hot water rinse cycles.
- The washing chamber is made of S.S. with a hinged-type Single door and contact parts compatible with water and chemical solutions.
- The unit is designed to be installed in a wall separating soiled and clean zones.
- Suitable for electric operation and comes complete with water circulating pump, necessary valves, and fittings.
- Provided with a device to control the process automatically in a time-regulated sequence, with a provision for manual operation.
- 4” touch screen HMI.

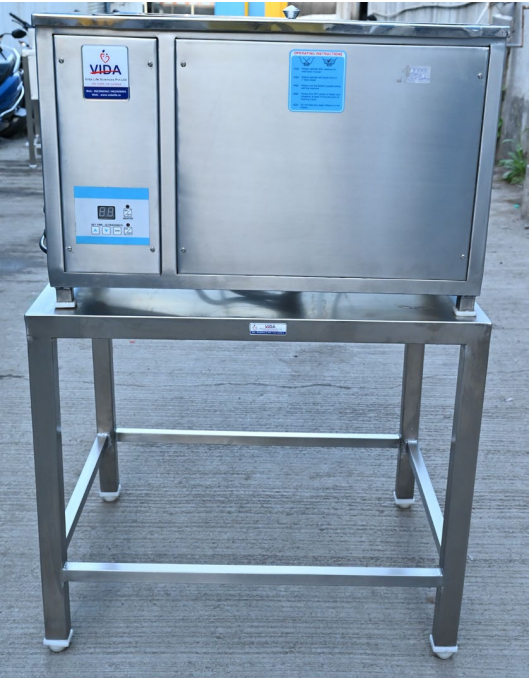

VIDA -40 Liters Capacity Ultrasonic Cleaning
Highlights
- 40 L Capacity
- Type: 40 L 500 H
- 500 Watts
- 45 kHz
- SS 304
Specifications
- CSSD Ultrasonic Cleaner Type: 40 L 500 H
- Ultrasonic Power: 500 Watts
- Tank Capacity: 40 Litres
- Without D-gassing cycle
- Tank Size: 550 x 300 x 200 mm
- Tank Frequency: 45 + 3 KHZ
- Electric Supply: 230 AV. 50 Hz with good earthing
Vida-CSSD Drying Cabinet for Drying
.png)
Highlights
- S.S. Chamber
- S.S. Outer Cabinet
- Size: 24”X24”X30”H
- 50ºC to 250ºC
- Air Ventilation
Specifications
- S.S. chamber with S.S. outer cabinet.
- Size: 24”X24”X30”H
- Heating Element: shall be of high grade imported nay chrome wire, placed at bottom and both side ribs for uniform temperature.
- Temperature control: Temperature controlled by imported capillary type Thermostat wide temperature 50ºC to 250ºC.

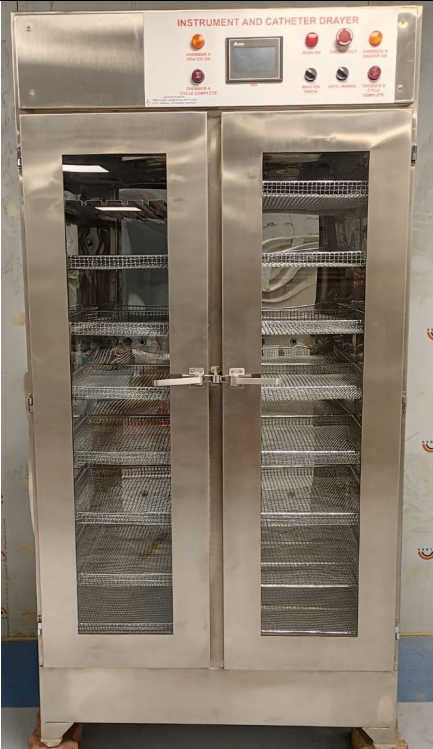

Vida-Instrument cum Catheter Drying Cabinet (Hot air oven)
.png)
Highlights
- Dual Chamber
- Dual Door
- HEPA Filter
- PLC with HMI
- Instrument & Catheter
Dimensions & Capacity
- Outer Size: 36” (L)X30” (W)X72” (H)
- Inner Size for Instrument: 15” (L)X22” (W)X51” (H)
- Inner Size for Catheter: 15” (L)X22” (W)X51” (H)
- SS wire mesh OR Perforated tray for instrument dying, both side of dryer provision for instrument and catheter simultaneously. – 8nos.

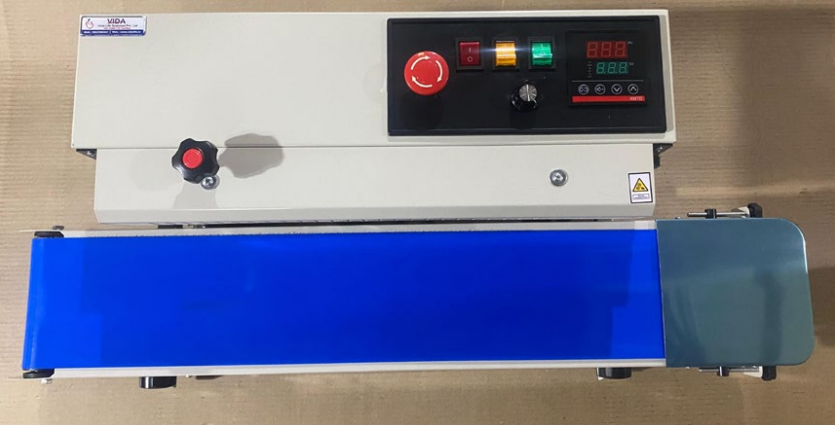

Vida-Automatic Heat Sealing Machine
Highlights
- Horizontal/Vertical
- Continuous Sealing
- Digital Temp Control
- Conveyor Speed 0~12 m/min
Features & Specifications
- Horizontal continues Sealing Machine
- Size: 850X420X360 mm Vertical/Horizontal mountable models.
- Optional embossing facility on sealing on select models.
- Digital temperature control and display
- Conveyor Speed: 0~12 m/min
