SS 316 With data storage facility up-to 1 thousand cycles
Vida-Fully Automatic Horizontal Rectangular Steam Sterilizer Vertical Sliding (Automatic Door) Double Door
.png)
.png)
Highlights
- SS 316
- Vertical Sliding Automatic Door
- 1000 Cycle Data Storage
- PLC Based Control
Technical Specification
- Chamber 8 mm Thickness & S. S. 316 quality.
- Doors are made of S.S. 316 quality & 12mm thickness.
- Jacket S.S. & 8 mm thickness
- 1 No. Steam generator will be of 27k.w.
- Temperature Controller 121/134 degree
- Stand S.S.
- 2 HP Vacuum Pump will be provided.
- Hydraulic steam door locking system. (Bellow plate locking system removed in our new design)
- Door hinges and clutch nut assembly will be SS 304
- Side Valve to Control different phases of sterilizing cycle
- Individual Valves For Size above 2’ X 2’ X 4’ Read More
Advanced PLC-based steam sterilizer with HMI 7.5” Color Touch Screen, automatic water filling, and detailed cycle recording.

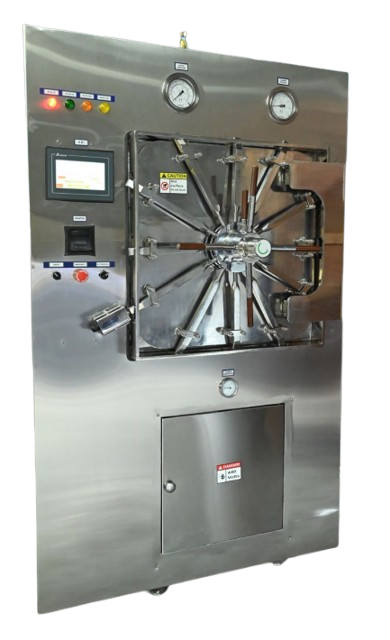

VIDA- Fully Automatic Horizontal Rectangular Steam Sterilizer Double Door (Manual Door) SS 316
Highlights
- Manual Door Double Door
- Advanced PLC
- Auto Water Filling
Technical Specification
- Chamber 8 mm Thickness & S. S. 316 quality.
- Doors are made of S.S. 316 quality & 12mm thickness.
- Jacket S.S. & 8 mm thickness
- 1 No. Steam generator will be of 27k.w.
- Temperature Controller 121/134 degree
- Stand S.S.
- 2 HP Vacuum Pump will be provided.
- Hydraulic steam door locking system. (Bellow plate locking system removed in our new design)
- Door hinges and clutch nut assembly will be SS 304
- Side Valve to Control different phases of sterilizing cycle
- Individual Valves For Size above 2’ X 2’ X 4’

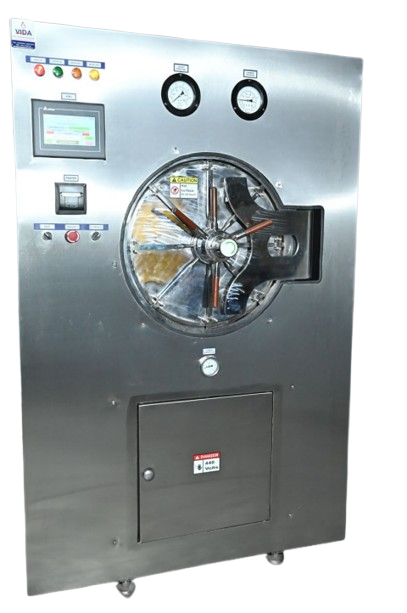

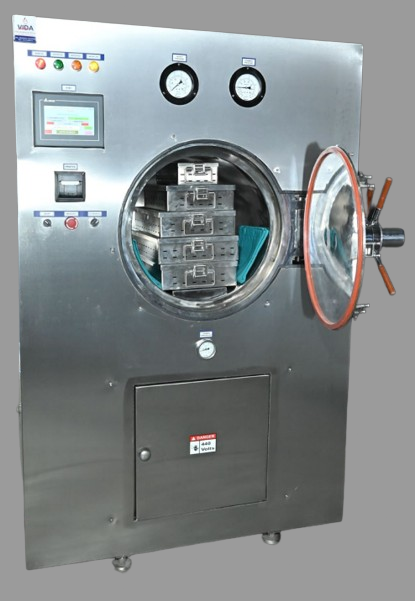

Vida- Fully Automatic Horizontal High Speed Steam Sterilizer Double Door (Manual Door)
Highlights
- High Speed Sterilization
- Energy Efficient
Technical Specification
- Chamber 6 mm Thickness & S. S. 316 quality.
- Doors are made of S.S. 316 quality & 12mm thickness.
- Jacket S.S. & 8 mm thickness
- 1 No. Steam generator will be of 27k.w.
- Temperature Controller 121/134 degree
- Stand S.S.
- Hydraulic steam door locking system. (Bellow plate locking system removed in our new design)
- Door hinges and clutch nut assembly will be SS 304
- Limit switch provided for both side doors. Machine process will not start if door not closed properly.
Single Door Automatic Cartridge Type with Touch Screen and Printer
Vida E.T.O. Sterilizer – Fully Automatic SS 304 with Sensor
Highlights
- SS 304
- Automatic Cartridge
- 6 Hrs Cycle
- PLC HMI
Product Overview
- Single Door Automatic Cartridge Type with Touch Screen and Printer with Sensor
- Total Cycle Time with aeration mode is only 6 hrs
- Material of construction :- Chamber :4MM S.S. 304
- Outer body : S.S. 304
- Door : S.S. 304
- Operating Gas pressure : 1kg /Cm2
- Hydraulic pressure test : 2kg
- Manual operating system available in case auto system not works.
- Pneumatic solenoid valve for perfect Automation.
- Safe use of Cartridge – cartridge is punctured only when proper negative pressure build-up and VLT Test passed.

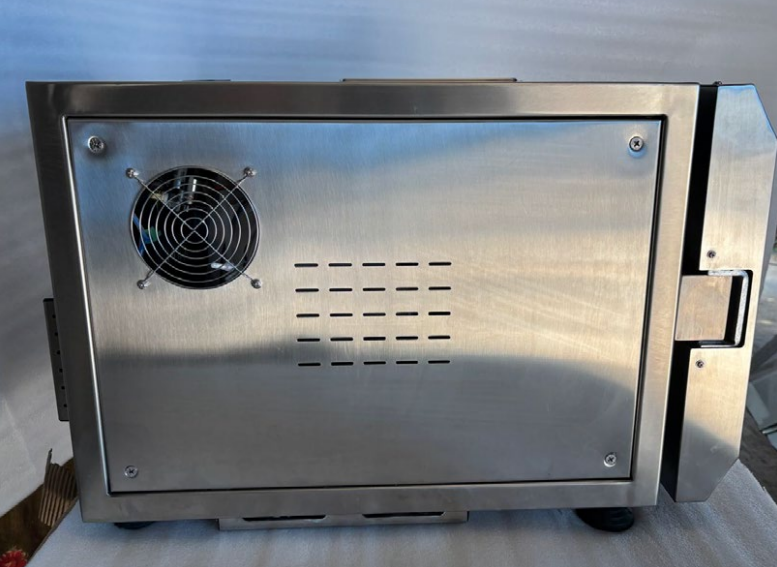

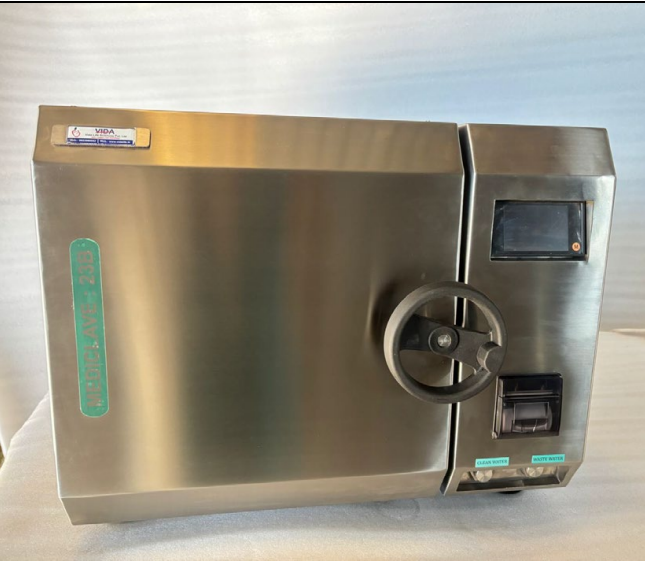

Vida- Autoclave Class -B Series
.png)
Highlights
- Class B Standard
- Compact Design
Specifications
- Convenient and fast Single lever locking of door.
- Size: Ø250 x 450mm
- Cap: 24ltr
- Electrical on/off safety switch.
- Electric interlock for lid lock safety.
- Safe and sturdy chamber manufactured to ASME standards in SS 304.
- Bacteria filter.
- User Password.
